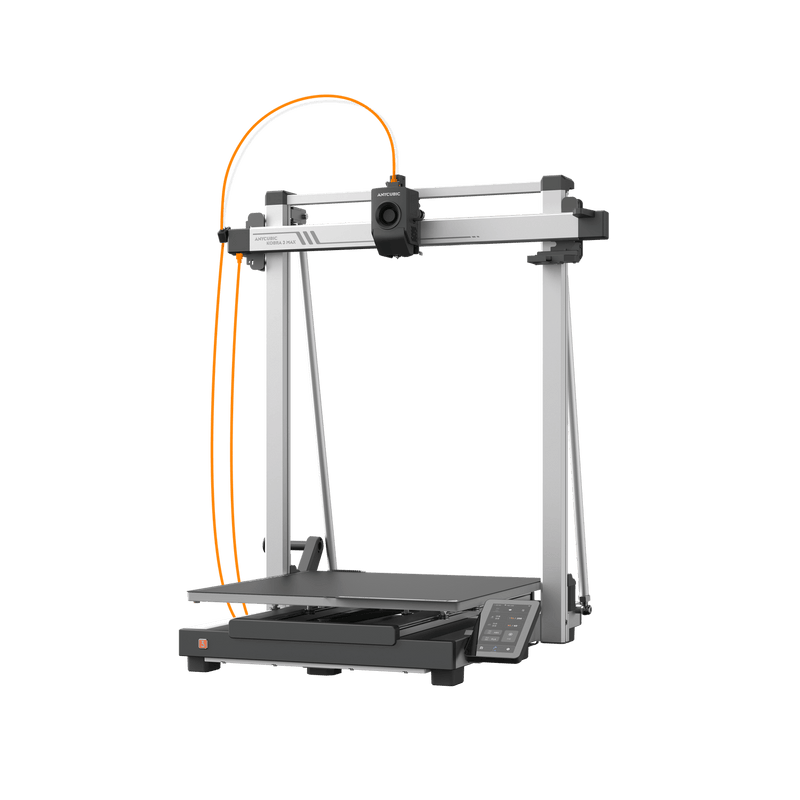

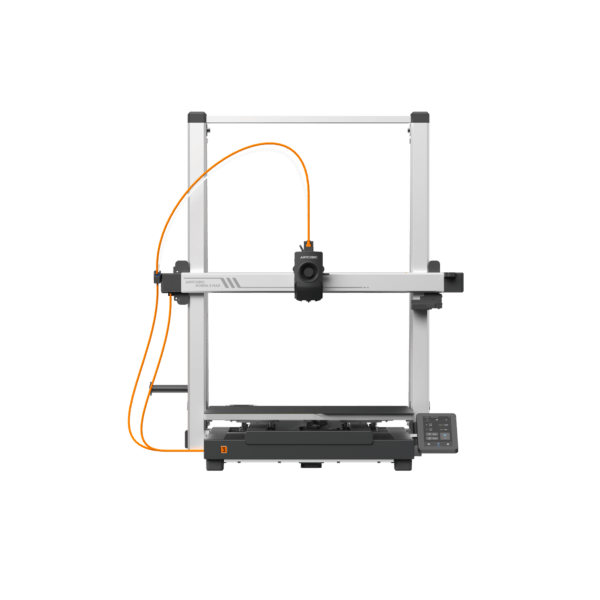

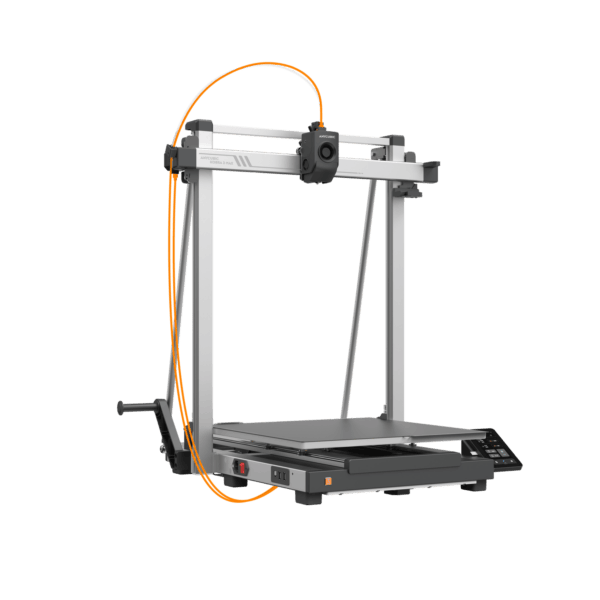

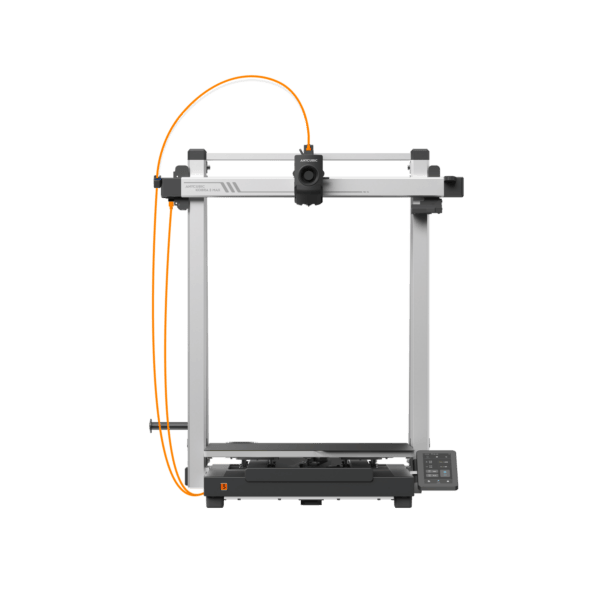

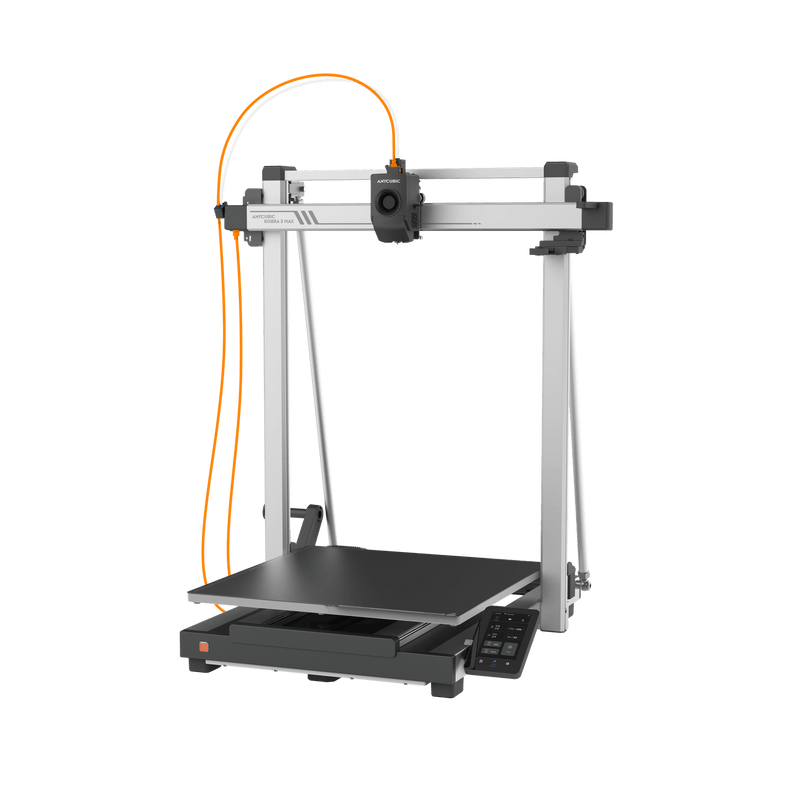

Anycubic Kobra 3 Max – Extra-Large 3D Printer
Print big pieces in one go. The Kobra 3 Max has a huge 420 × 420 × 500mm build volume. You can print cosplay helmets, props, architectural models and large prototypes whole, instead of splitting them into parts and gluing them together.
A huge build space. At 420 × 420 × 500mm, it’s one of the largest printers in its class. It has room for full-size props, tall display pieces or a big batch of smaller parts at once.
Fast for its size. Print speeds go up to 600mm/s, so large jobs take far less time.
Easy first layers. Automatic levelling probes the bed before each print, so you don’t have to level it by hand. The PEI magnetic spring steel plate holds prints firmly while printing. Once the plate cools, flex it and the part pops off.
Built for long prints. Large prints can run for many hours, so the Kobra 3 Max has two safeguards:
-
Power-loss resume picks up where the print stopped after a power cut.
-
Filament runout detection pauses the print when the spool runs out, then carries on once you’ve reloaded.
Control it your way. Slice in Anycubic Slicer Next or OrcaSlicer, then send prints over Wi-Fi or by USB drive. Monitor and control jobs from your phone with the Anycubic App and AC Cloud, or use the touchscreen on the printer. A port for an optional camera lets you add video monitoring.
Prints the everyday materials. It handles PLA, PETG, TPU and ABS.
Backed by a 12-month manufacturer warranty.
Key features
- Extra-large 420 × 420 × 500mm build volume
- Print speeds up to 600mm/s
- Automatic bed levelling
- PEI magnetic spring steel build plate
- Power-loss resume
- Filament runout detection with auto-resume
- Wi-Fi, app and cloud control, plus USB drive printing
- Touchscreen with multiple languages
- Port for an optional camera
- Works with PLA, PETG, TPU and ABS
Specifications
- Printing technology: FDM
- Build volume: 420 × 420 × 500mm
- Layer thickness: 0.08 – 0.28mm
- Max print speed: 600mm/s
- Compatible filaments: PLA, PETG, TPU, ABS
- Nozzle: 0.4mm
- Extruder: single
- Build plate: PEI magnetic spring steel
- Y-axis: dual metal guide shafts
- Z-axis: lead screws
- Levelling: automatic
- Safety: power-loss resume, filament runout detection with auto-resume
- Control: touchscreen, Anycubic App, AC Cloud, Anycubic Slicer Next, USB drive
- Connectivity: Wi-Fi (2.4 GHz), USB drive
- Camera: optional (port provided, camera not included)
- Slicer software: Anycubic Slicer Next, OrcaSlicer
- File formats: STL, OBJ, 3MF in; G-code out
- Power input: 110V / 220V AC
- Rated power: 1100W
- Machine dimensions: 706 × 640 × 753mm
- Weight: approx. 18kg
- Warranty: 12 months
What’s in the box
- Kobra 3 Max printer frame and base
- Printhead
- Touchscreen
- Spool holder
- Cable holder
- Support rod
- 6 × labelled screw bags for assembly
- USB drive
- Power cord
- 5 × cable organisers
- Filament tube
- Allen keys (6.0 / 4.0 / 3.0 / 2.5 / 2.0 / 1.5mm)
- Wrench
- Nozzle cleaner
- Filament sample
- Grease
- User manual
