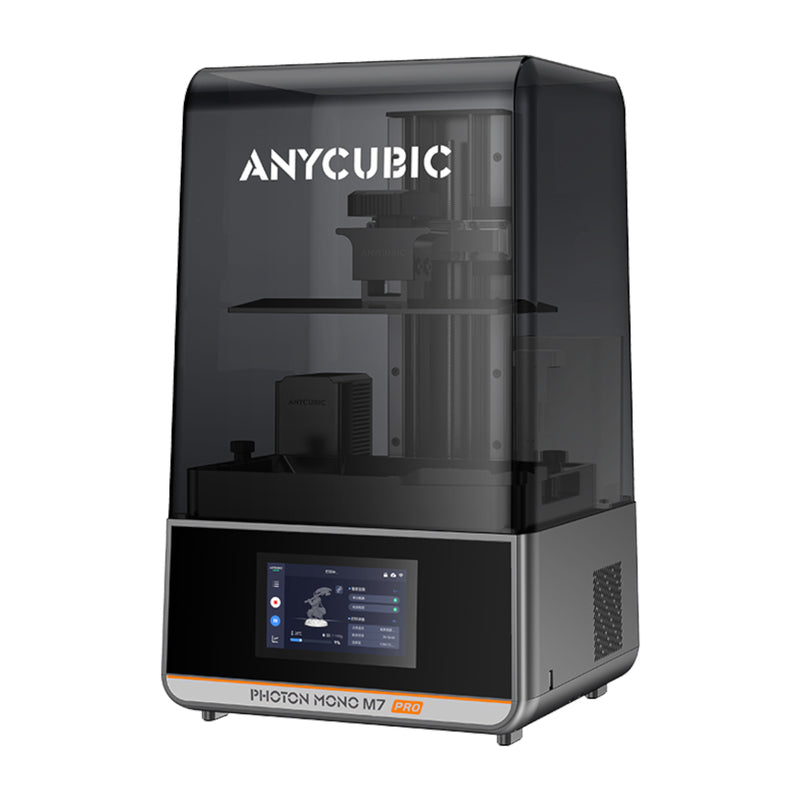

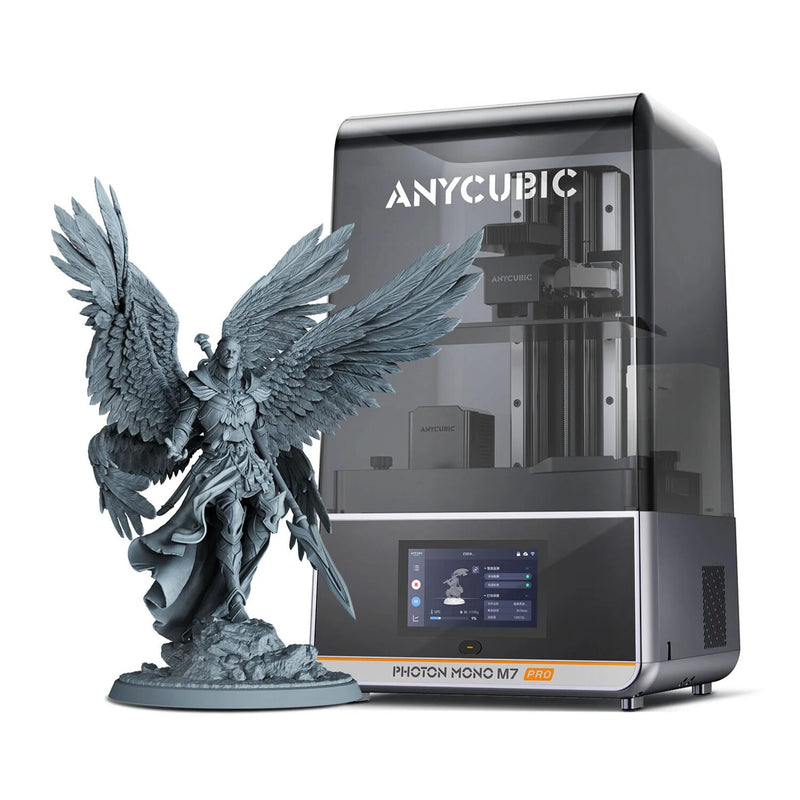

Anycubic Photon Mono M7 Pro – 10.1" 14K Resin 3D Printer
Sharp detail, fast prints and far less mess. The Photon Mono M7 Pro is built for makers who want production-quality results without babysitting the machine.
Detail you can see. A 10.1-inch 14K monochrome LCD prints at 16.8 × 24.8µm on the X/Y axis, so fine textures, small text and miniature faces come out crisp and clean.
Faster prints. Print at up to 170mm/h with High-Speed Resin, or up to 130mm/h with standard resin. Jobs that used to run overnight can finish in a single session.
Consistent results, print after print. Dynamic temperature control keeps your resin in its ideal working range, and the auto-fill unit tops up the vat and draws resin back automatically. Long prints can run unattended, with less spilling and guesswork.
Room to create. A 223 × 126 × 230mm (6.5L) build volume fits large single models or a full plate of miniatures. The laser-engraved build plate gives strong adhesion, dual linear Z-axis rails give 10µm precision, and there’s no levelling to do before your first print.
Works the way you do. It prints high-speed, water-washable, standard, ABS-like and plant-based resins. Send files over USB, Wi-Fi or LAN, slice in Photon Workshop or Chitubox, and control everything from the 4.3" touchscreen or the Anycubic App.
Key features
- 10.1" 14K monochrome LCD
- Up to 170mm/h with High-Speed Resin
- Dynamic temperature-controlled resin vat
- Automatic resin refill and withdrawal
- Levelling-free, laser-engraved build plate
- Dual linear Z-axis rails (10µm precision)
- USB, Wi-Fi and LAN connectivity
Specifications
- Build volume: 223 × 126 × 230mm (6.5L)
- Print speed: up to 130mm/h (standard resin, 0.1mm layers); up to 170mm/h (High-Speed Resin, 0.1mm layers)
- Layer height: 0.01 – 0.15mm
- X/Y resolution: 16.8 × 24.8µm
- Screen: 10.1" monochrome LCD, 14K
- Light source: COB light source with Fresnel lens and light-uniformity algorithm
- Light intensity: 5500µW/cm² (±10%)
- Compatible resins: high-speed, water-washable, standard, ABS-like, plant-based and more
- Build plate: laser-engraved
- Z-axis: dual linear rails, 10µm precision
- Release film: improved ACF film
- Resin vat: up to 1L, with dynamic temperature control
- Resin auto-fill unit: included
- Levelling: levelling-free
- Power-loss resume: not supported
- Slicing software: Photon Workshop, Chitubox (Lychee Slicer support planned)
- File transfer: USB, Wi-Fi, LAN
- Controls: 4.3" touchscreen, Anycubic App
- Languages: English, Chinese, German, French, Italian, Spanish, Russian, Japanese
- Power supply: 240W
- Screen protection: replaceable scratch-resistant film
- Air purifier: optional accessory (sold separately)
- Dimensions: 312 × 315 × 520mm
- Weight: 12.8kg
What’s in the box
- Anycubic Photon Mono M7 Pro printer
- Build platform
- Resin vat
- Auto-fill unit
- Wi-Fi antenna
- Hex key set
- Protective equipment
- 5 × filters
- 2 × scrapers
- Levelling paper
- USB drive
- Power cord
- Screen protector kit
- User manual
